Gigabyte B650 EAGLE AX, AMD B650, AM5, 4xDDR5, ATX

   AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
   Unparalleled Performance:12+2+2 Phases Digital VRM Solution
   Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
   SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
   Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
   EZ-Latch:PCIe x16 Slot with Quick Release Design
   Fast Networks:Wi-Fi 6E 802.11ax & GbE LAN
   Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

   Key Features Specification Support News & Awards Gallery Buy

   CPU
   AMD Socket AM5, support for:
   AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   Chipset
   AMD B650
   Memory
   Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
   4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)
   of system memory
   Dual channel memory architecture
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
   Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data
   rate (speed), and number of DRAM modules, please refer to "Memory Support
   List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor:
   - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

   * Support for DisplayPort 1.4 version.

   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   (Graphics specifications may vary depending on CPU support.)
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To

   configure 7.1-channel audio, access the audio software for audio settings.
   LAN
   Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
   Wireless Communication module
   Realtek® Wi-Fi 6E RTL8852CE
   - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11ax 160MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
   - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
   * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
   Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
   - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
   - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

   1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
   - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
   - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
   - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

   Chipset:
   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)

   4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, and RAID 10 support for SATA storage devices
   USB
   CPU:
   - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
   CPU+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports on the back panel
   Chipset:
   - 2 x USB 3.2 Gen 1 ports available through the internal USB header
   - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the
   internal USB header
   - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through
   the internal USB header)
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports available through the internal USB headers
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   2 x system fan headers
   1 x system fan/water cooling pump header
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   3 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   3 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/
   GC-TPM2.0 SPI V2 module only)
   1 x Q-Flash Plus button
   1 x serial port header j
   1 x Clear CMOS jumper

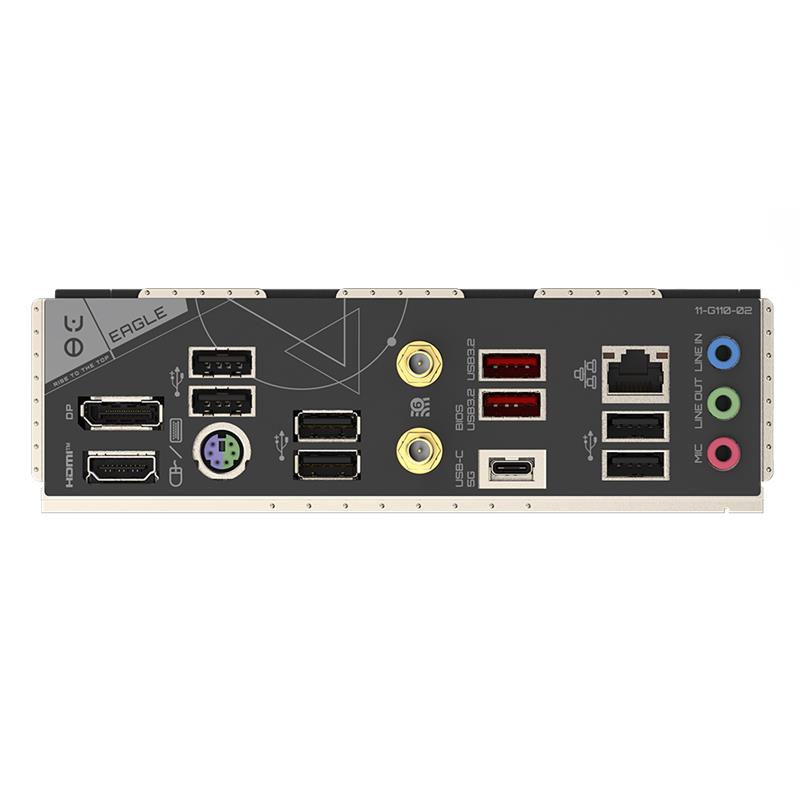

   Back Panel Connectors
   1 x DisplayPort
   1 x HDMI port
   1 x PS/2 keyboard/mouse port
   2 x SMA antenna connectors (2T2R)
   1 x USB Type-C® port, with USB 3.2 Gen 1 support
   2 x USB 3.2 Gen 2 Type-A ports (red)
   6 x USB 2.0/1.1 ports
   1 x RJ-45 port
   3 x audio jacks
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan

   (pump) you install.
   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions

   of each application may also vary depending on motherboard specifications.
   Support for Q-Flash
   Support for Q-Flash Plus
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Sup
