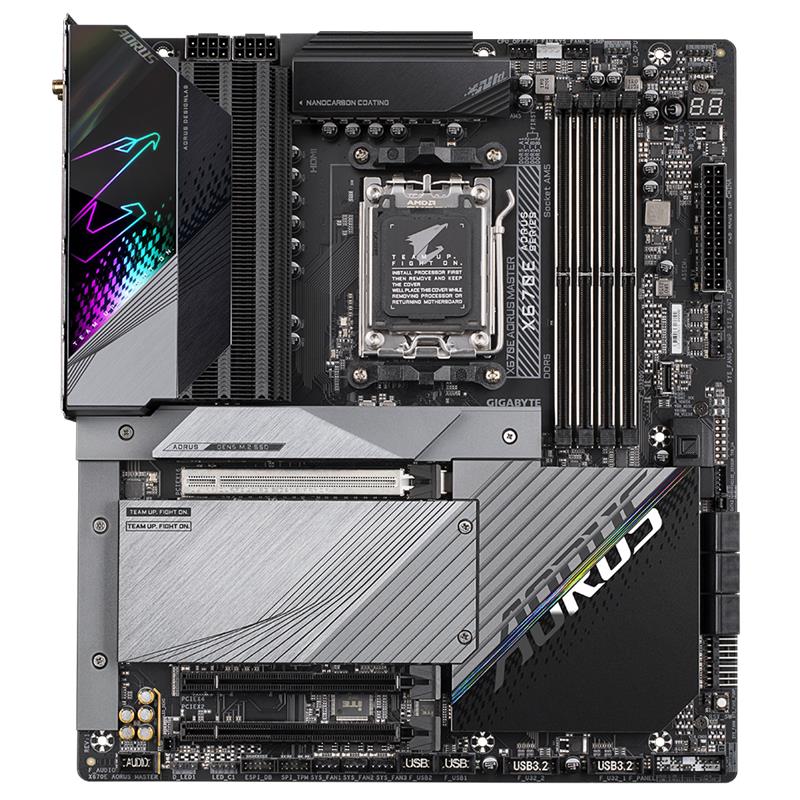

Gigabyte AORUS X670E MASTER, AMD X670E, AM5, 4xDDR5, E-ATX

Unparalleled Performance:Twin 16*+2+2 Phases Digital VRM Solution
Next Generation Storage:2*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC
Fast Networks:Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
Extended Connectivity:DP, HDMI, USB-C® with DP Alt Mode, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

       AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
   Chipset        AMD X670
   Memory       Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
       4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
   (Please refer "Memory Support List" for more information.)
   Onboard Graphics
   Integrated Graphics Processor:
       1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
       * Support for DisplayPort 1.4 version and HDR.
       1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
       * Support for DisplayPort 1.4 version and HDR.
       1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.1 version and HDCP 2.3.
       ** Support native HDMI 2.1 TMDS compatible ports.
   (Graphics specifications may vary depending on CPU support.)
   Audio
       Realtek® ALC1220-VB CODEC
       * The back panel line out jack supports DSD audio.
       Support for DTS:X® Ultra
       High Definition Audio
       2/4/5.1/7.1-channel output
       * You can change the functionality of an audio jack using the audio software. To configure
       7.1-channel audio, access the audio software for audio settings.
       Support for S/PDIF Out
   LAN
       Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   Intel® Wi-Fi 6E AX210
       WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
       BLUETOOTH 5.3
       Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
       (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   CPU:
       1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
       * Actual support may vary by CPU.
       * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   Chipset:
       1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
       1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
       * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
   Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
   Storage Interface
   CPU:
       1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
       * Actual support may vary by CPU.
       1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
       * Actual support may vary by CPU.
   Chipset:
       2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
       6 x SATA 6Gb/s connectors
   RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, and RAID 10 support for SATA storage devices
   USB
   CPU:
       1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
       2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
   CPU + USB 2.0 Hub:
       2 x USB 2.0/1.1 ports on the back panel
   Chipset:
       2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
       2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
       4 x USB 3.2 Gen 1 ports available through the internal USB headers
       4 x USB 2.0/1.1 ports available through the internal USB headers
   Chipset+USB 3.2 Gen 1 Hub:
       4 x USB 3.2 Gen 1 ports on the back panel
   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       2 x 8-pin ATX 12V power connectors
       1 x CPU fan header
       1 x water cooling CPU fan header
       4 x system fan headers
       4 x system fan/water cooling pump headers
       2 x addressable LED strip headers
       2 x RGB LED strip headers
       1 x CPU cooler LED strip/RGB LED strip header
       4 x M.2 Socket 3 connectors
       6 x SATA 6Gb/s connectors
       1 x front panel header
       1 x front panel audio header
       1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
       2 x USB 3.2 Gen 1 headers
       2 x USB 2.0/1.1 headers
       1 x noise detection header
       1 x THB_U4 add-in card connector
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
       1 x power button
       1 x reset button
       1 x reset jumper
       1 x Clear CMOS jumper
       2 x temperature sensor headers
       Voltage Measurement Points

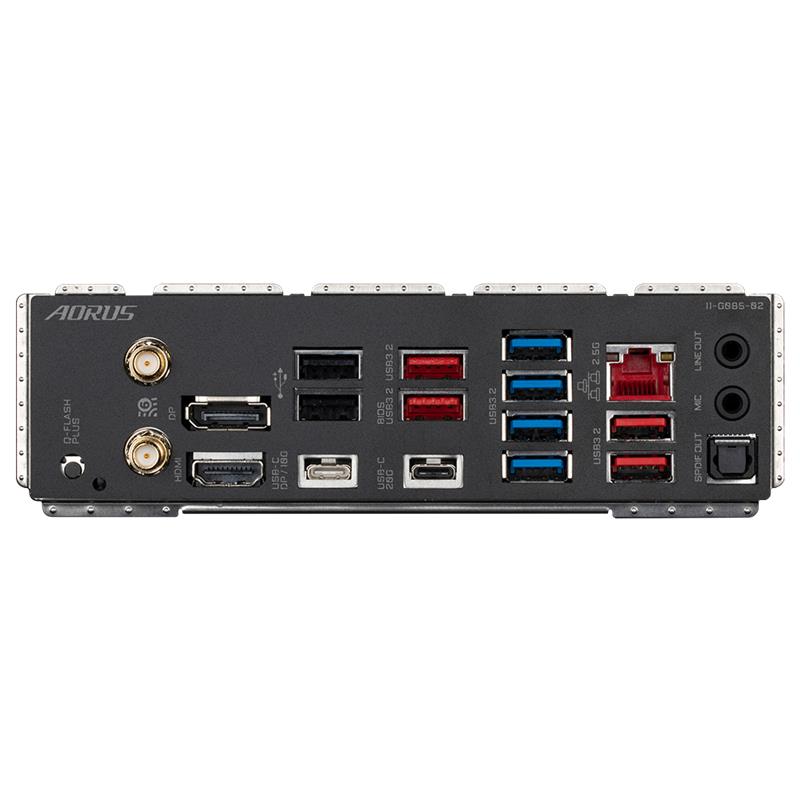

   Back Panel Connectors
       1 x Q-Flash Plus button
       2 x SMA antenna connectors (2T2R)
       1 x DisplayPort
       1 x HDMI port
       1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
       1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
       4 x USB 3.2 Gen 2 Type-A ports (red)
       4 x USB 3.2 Gen 1 ports
       2 x USB 2.0/1.1 ports
       1 x RJ-45 port
       1 x optical S/PDIF Out connector
       2 x audio jacks
   I/O Controller
       iTE® I/O Controller Chip
       E-ATX Form Factor; 30.5cm x 26.9cm
